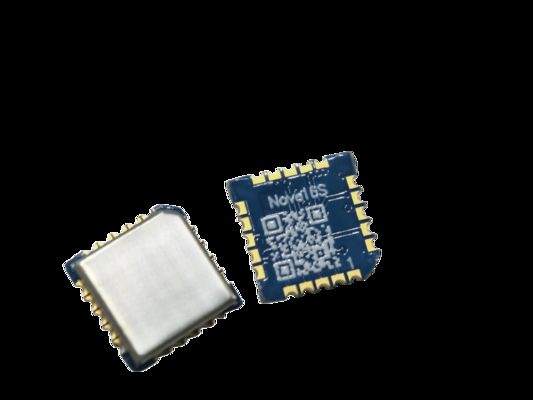

DMC640 Small Size High-Cost Effective AHRS

  • DMC640 Small Size High-Cost Effective AHRS
Nom de marque BWSENSING
Numéro de modèle DMC640
Quantité de commande min 1
Prix contact us
Délai de livraison 10 jours ouvrables
Conditions de paiement T / t, l / c

Contactez-moi pour des aperçus gratuits et des bons.

whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

Si vous avez n'importe quel souci, nous fournissons l'aide en ligne de 24 heures.

x
Détails sur le produit
Laisser un message
Description de produit

The DMC640 high-precision attitude and heading reference system employs industrial-grade microcontrollers renowned for their reliability and robust interference resistance, alongside high-precision magnetic sensors and driver chips. It integrates BWSENSING's proprietary rapid calibration algorithm and anti-interference algorithm, enabling spatial manoeuvring during magnetic field calibration while resisting transient magnetic disturbances. This product employs a three-axis accelerometer and three-axis gyroscope to compensate for tilt angles, ensuring accurate heading data even in extremely harsh environments.



Featuring IAP upgrade capability, subsequent functionalities and interfaces will be delivered via IAP updates following programme revisions. Customisable to client requirements, it facilitates the swift and straightforward integration of attitude and heading reference system functionality into diverse products.



Power voltage 3.3V DC
Working current ＜150mA
Operating temperature -40℃~+85℃
DMC640 Small Size High-Cost Effective AHRS 0Storage temperature -55℃~+100℃
  Accelerometer   Gyroscope
Range ±8g   ±400°/s ±1000°/s
Noise density 200 µg/√Hz   1.5mdps/√Hz 5 mdps/√Hz
Bandwidth 100Hz   100Hz

Zero bias stability

(ALLEN)

 0.15ug   3 °/h
Environment Baud Rate   9600–921600 (default 115200)
User Calibration Procedure Calibration Method   Rapid calibration

DMC640 Small Size High-Cost Effective AHRS 1
